Screw-Together Case Kit for WisMesh Board ONE Meshtastic Devices

The Ultimate Screw-Together Case for Your WisMesh Board ONE

Go from a bare board to a durable, field-ready device. This compact, screw-secured enclosure is custom-designed to house your WisMesh Board ONE and a 2000mAh battery, turning your project into a professional and portable Meshtastic node.

Ā

Key Features:

  • Rock-Solid Durability: The screw-together design ensures your valuable board is protected and won't pop open during rugged use.

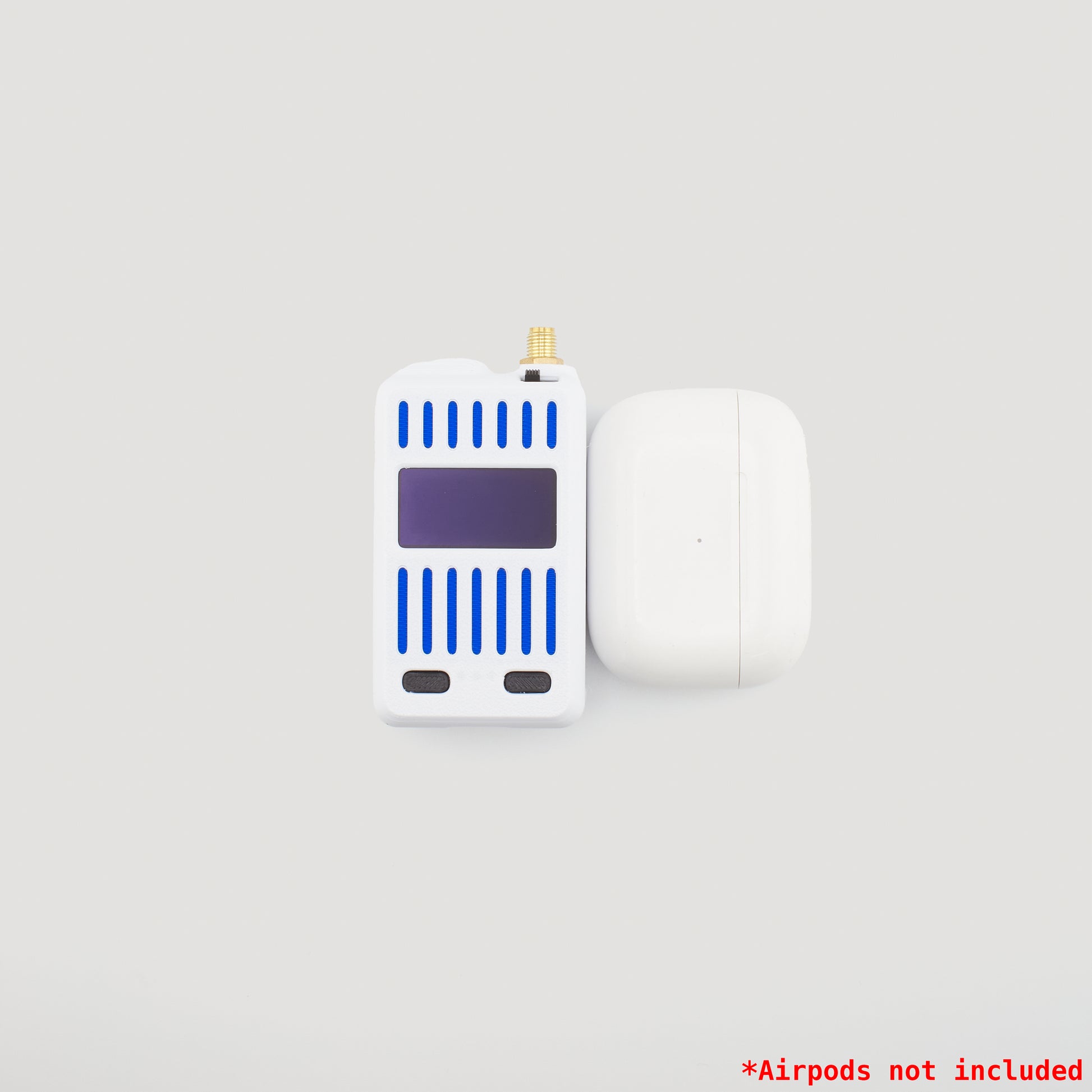

  • Pocket-Sized Form Factor: Compact and easy to carry, perfect for mobile applications.

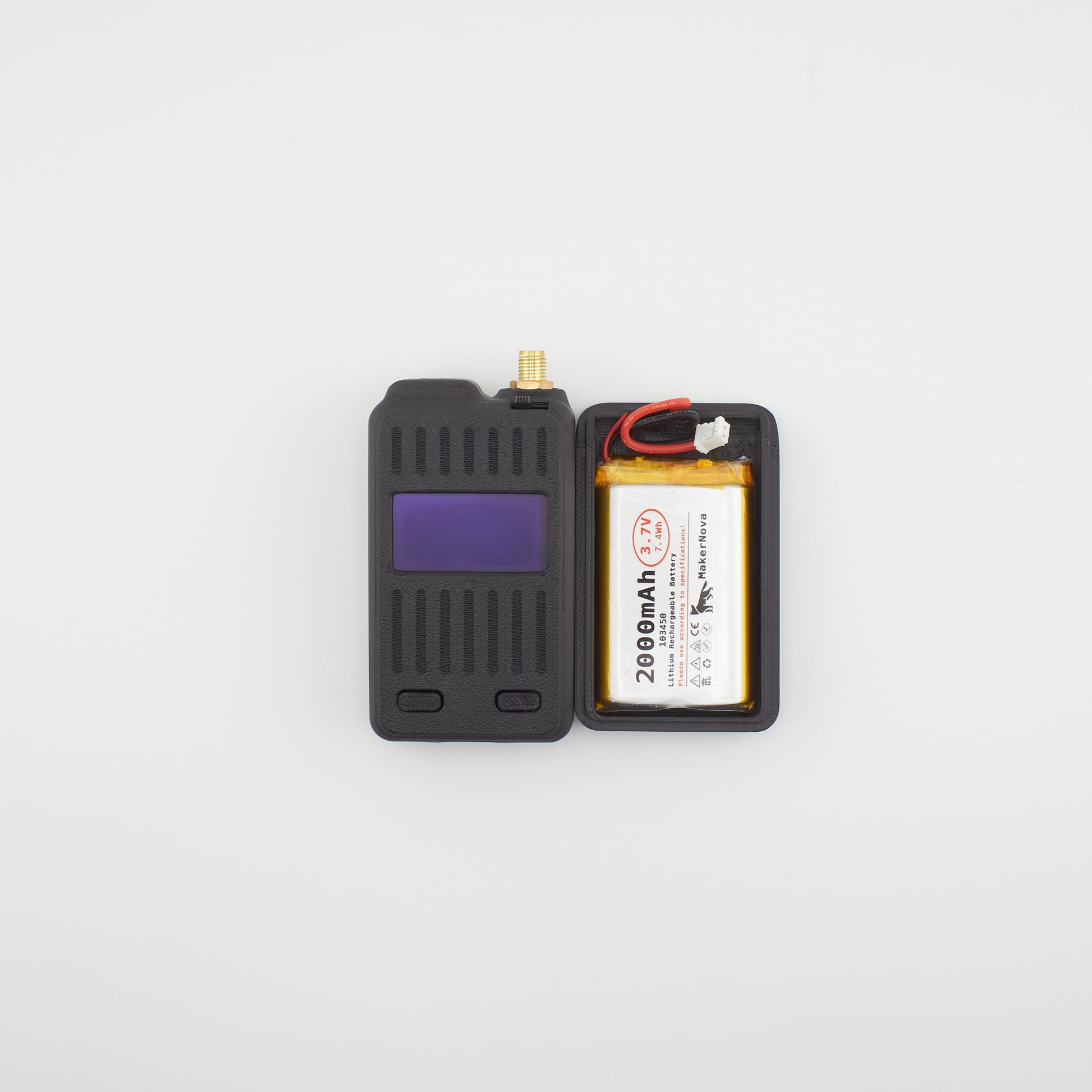

  • Designed for Long Battery Life: Perfectly fits a 2000mAh MakerNova LiPo battery for multi-day operation.
  • External Antenna Ready: Includes a dedicated SMA port for connecting high-performance LoRa antennas.

This is a DIY Kit for Makers!

This product requires soldering and experience with electronics. By purchasing, you confirm you have the technical ability to assemble the components. A functioning WisMesh Board ONE is required.

Step 1: Choose Your Kit

Select the kit that matches your needs. All kits include the case, switch, wiring pigtail, and assembly screws.

Kit Model Clip Style Antenna Included?

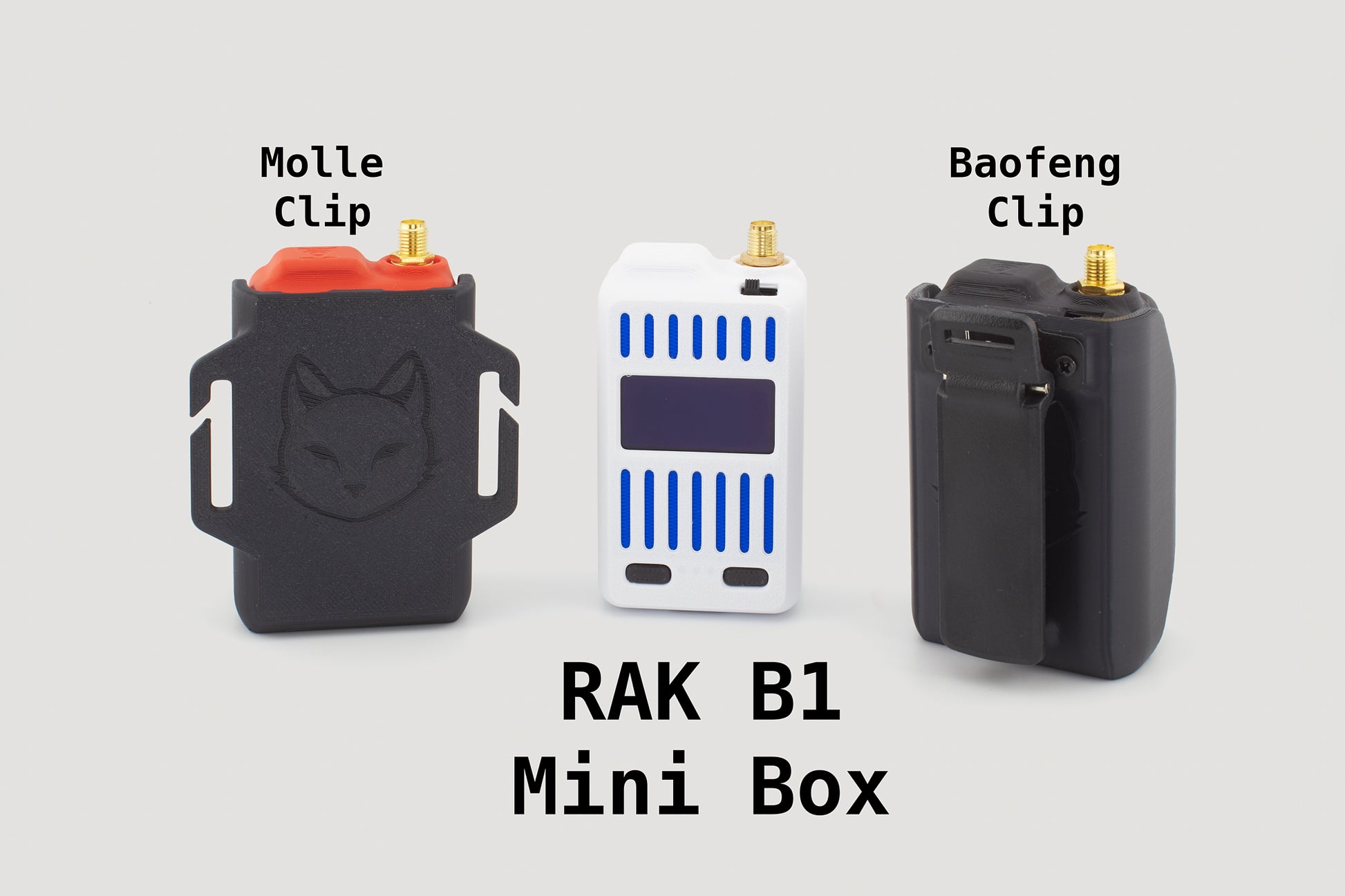

Case Kit (Baofeng) Baofeng Belt Clip No
Case Kit (MOLLE) MOLLE Clip No
Complete Kit Baofeng (or Molle by request) Yes (Gizont 915MHz)

Step 2: Get Your Additional Hardware

You will need these parts to complete your project. This case is designed around them for a perfect fit.

Required Components:

  • A functioning WisMesh Board ONE
  • Battery: 2000mAh MakerNova LiPo Battery
  • LoRa Pigtail: IPEX1 to SMA Adapter Cable
  • An external LoRa antenna (if not purchasing the Complete Kit)
Assembly & Wiring Guide (Read Before Building)

Important: Basic soldering skills are required. Review all steps before beginning.

1. Battery & Switch Wiring

SAFETY FIRST: Cutting battery wires requires extreme care. Do NOT let the red (+) and black (ā€“) wires touch after cutting to avoid a dangerous short circuit.

  1. Prepare Wires: Cut the connector off your battery. Strip ~3-4mm from the battery's red and black wires, and from the included JST-PH pigtail wires.

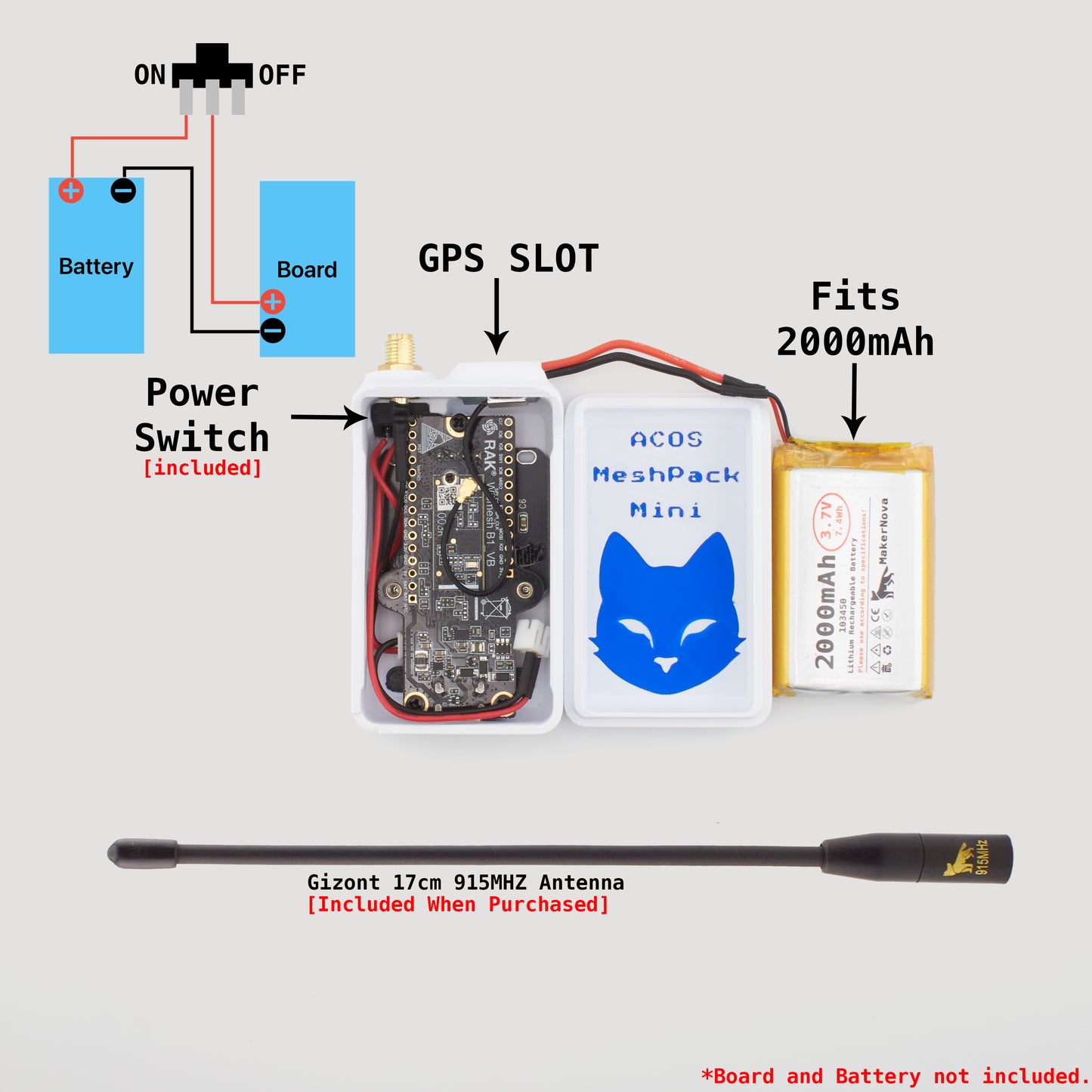

  2. Wire the Switch (Positive +): Solder the battery's red wire to one of the outer pins on the switch. Solder the pigtail's red wire to the center pin on the switch.
  3. Connect Ground (Negative ā€“): Solder the battery's black wire directly to the pigtail's black wire.
  4. Insulate: Securely cover the soldered ground connection with heat-shrink tubing or electrical tape.

Do not connect the pigtail to the board until final assembly.

2. Final Assembly

  1. Install the power switch and LoRa SMA pigtail into the case cutouts.

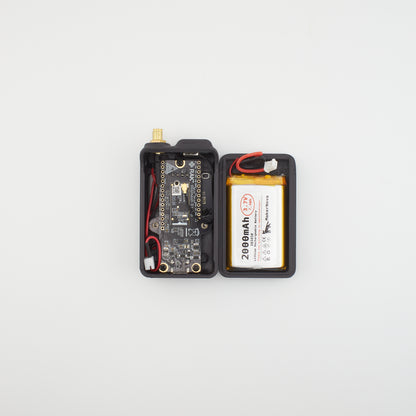

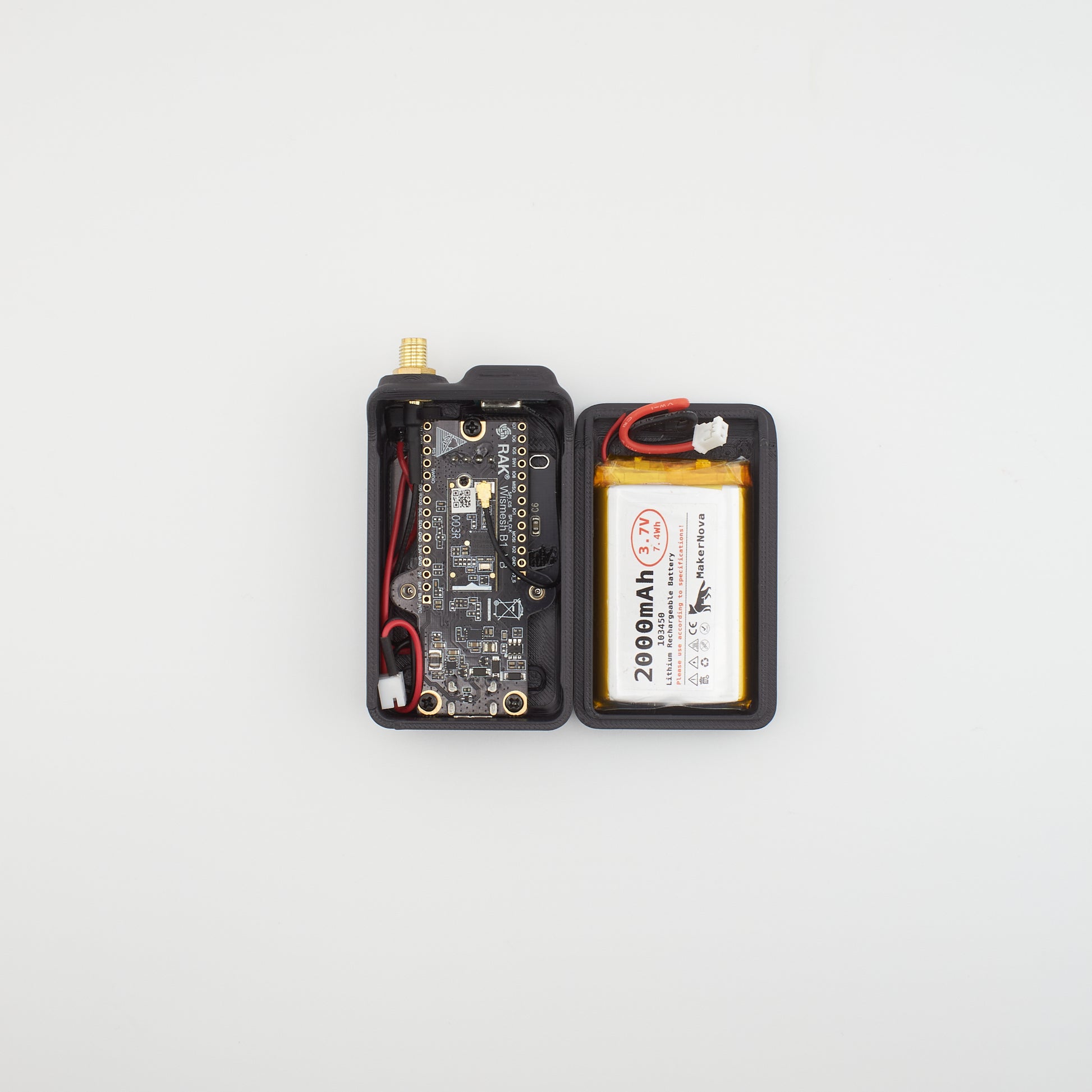

  2. Mount your WisMesh Board ONE into the case and secure it with screws.
  3. Use double-sided tape to secure the battery to the inside of the back cover.
  4. Attach your external LoRa antenna to the SMA connector. This is required before powering on.
  5. Plug the wired JST pigtail into the board's battery port.
  6. Close the enclosure and secure it with the final case screws. Test the power switch.
