Heltec T114 Pocket Case Collection for Meshtastic Devices | Pocket Pro and Pocket SMA Styles
The Ultimate Pocket Case for Your Heltec T114
Stop carrying a bare board. This custom-fit case transforms your T114 into a durable, pocket-sized Meshtastic node that's ready for any environment. It's the best way to protect your investment.
✅ Key Features:
- Rugged Protection: Guards your T114 from bumps, dust, and daily wear.
- Ultra-Portable Design: Slim and compact to easily slide into a pocket.

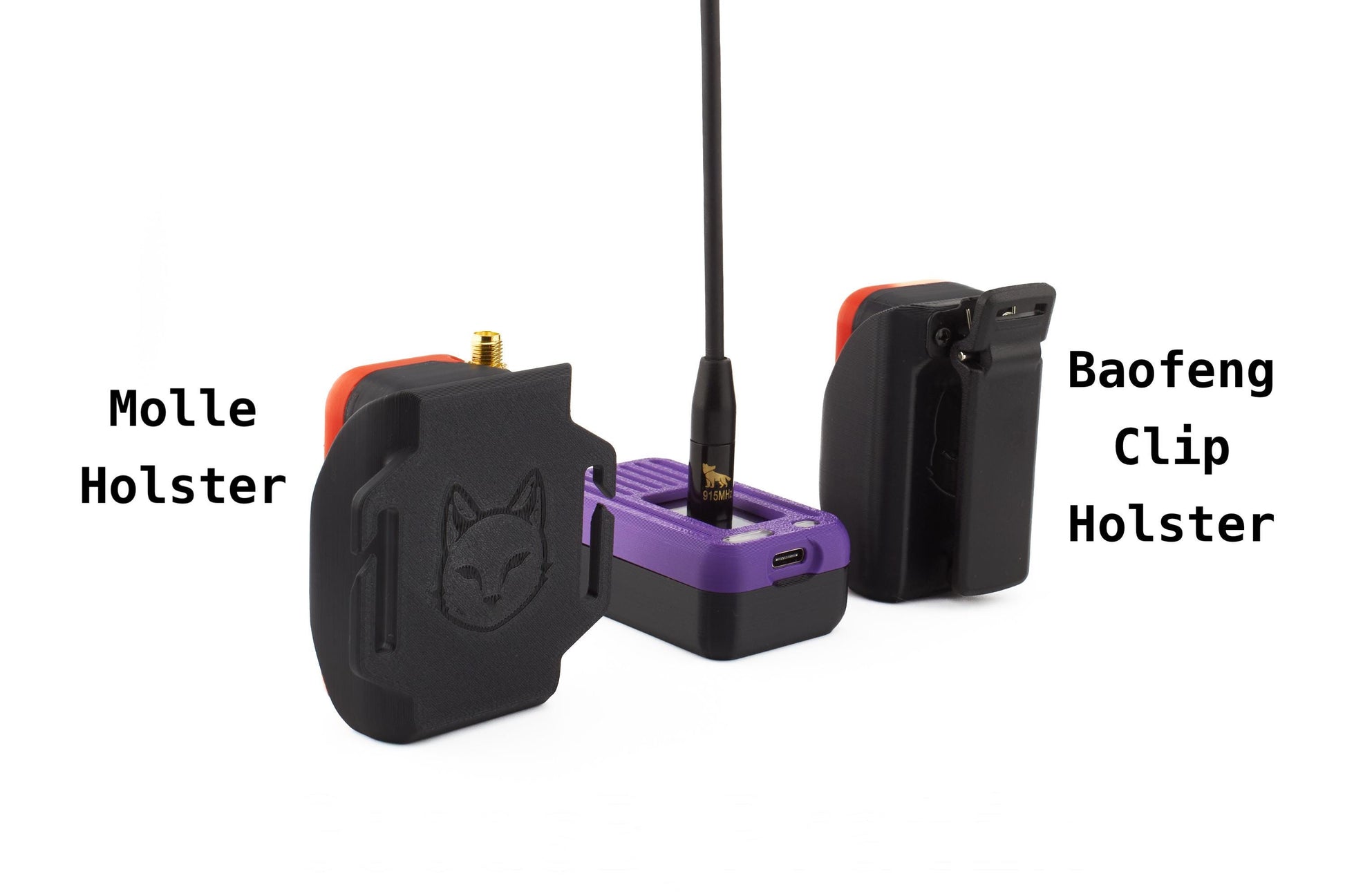

- Integrated Clip: Includes a detachable Baofeng/Molle compatible clip for secure carry.
✔️ Your Build Guide: Choose Your Mission
This case requires a battery and antenna. Follow one of the two guaranteed-fit build guides below.

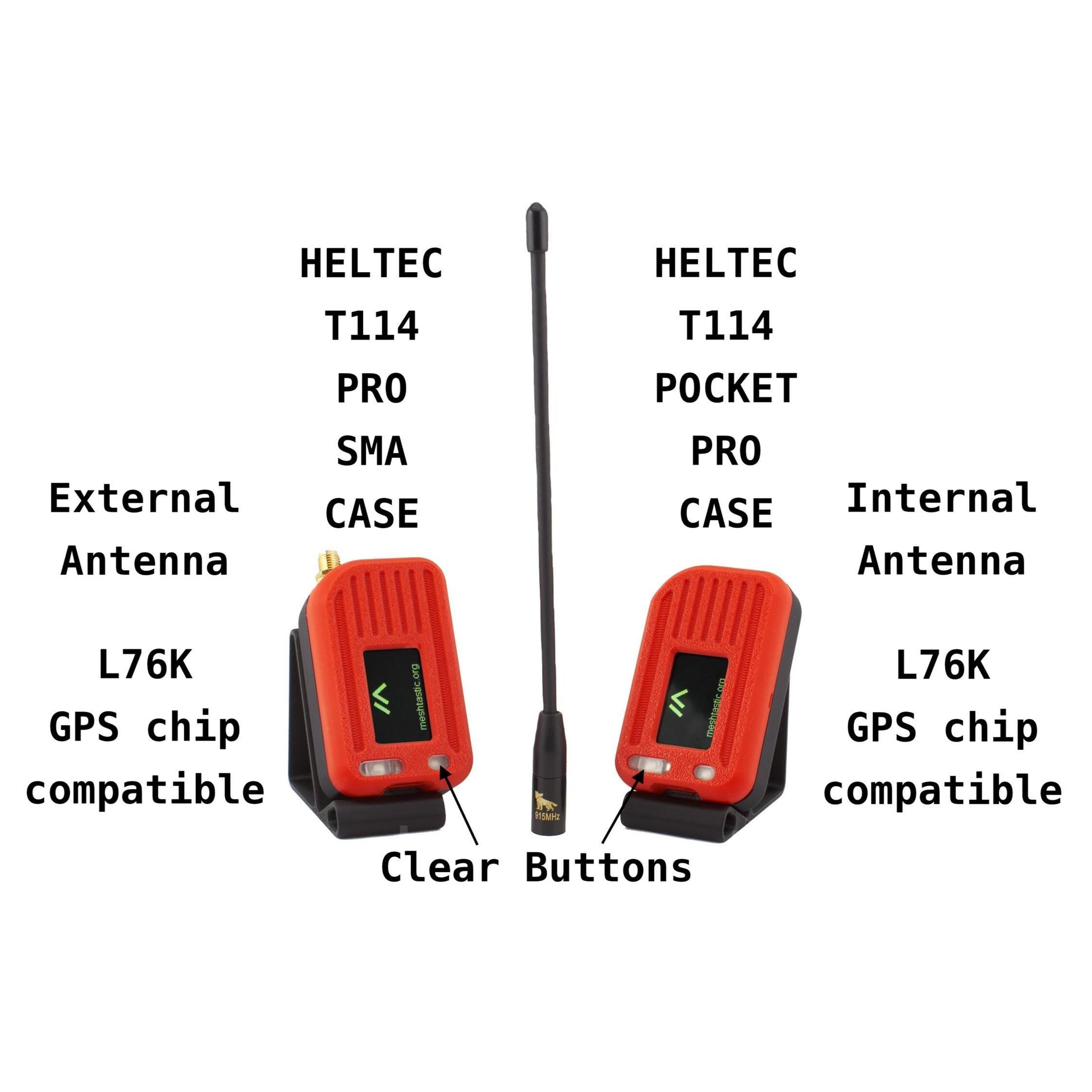

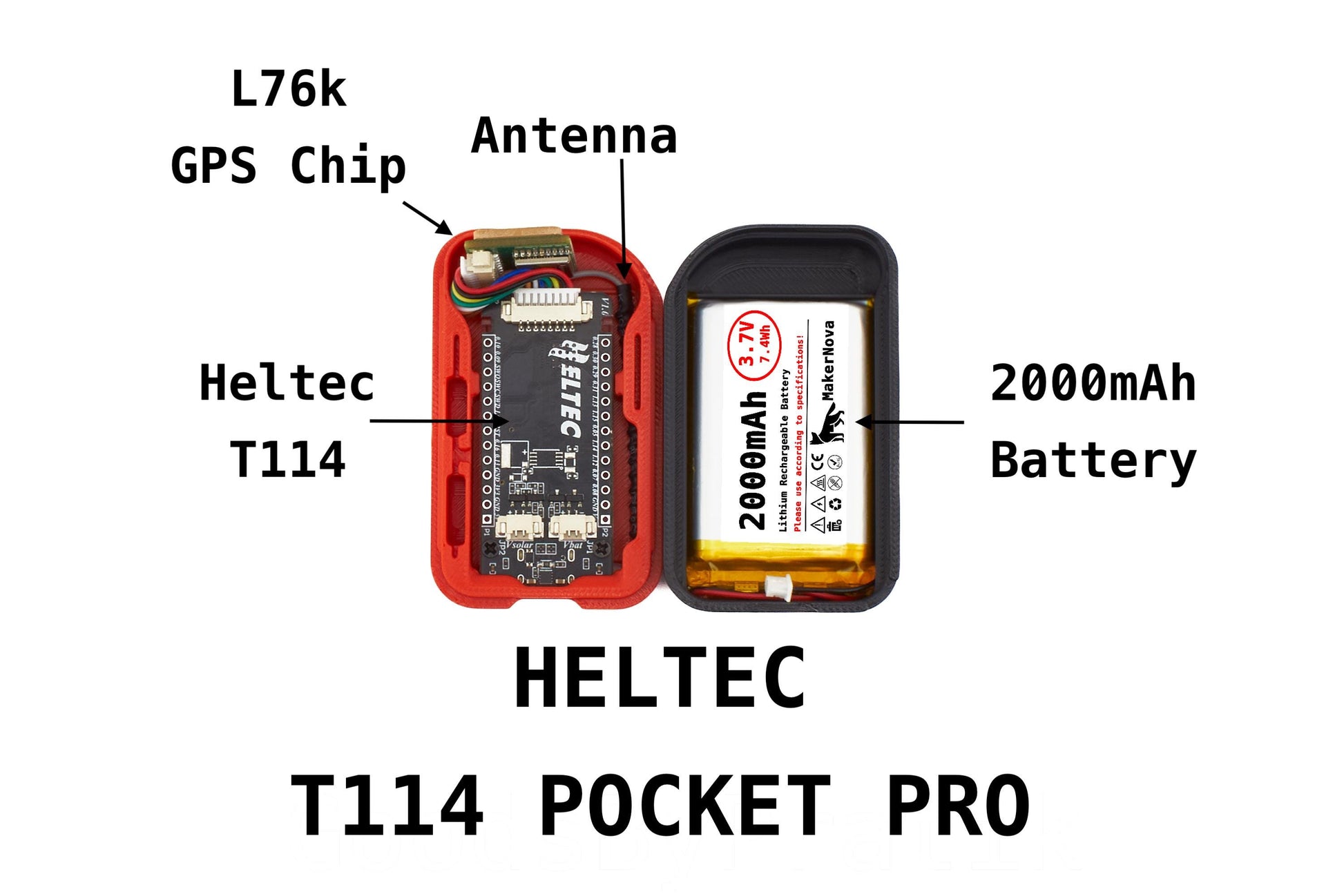

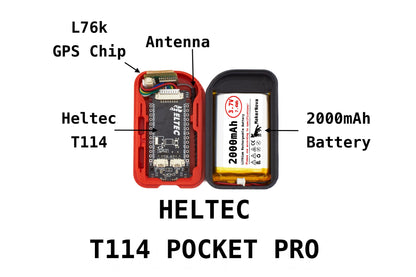

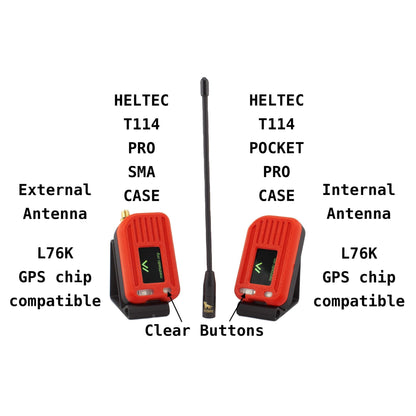

1. The Stealth Build (Pocket Pro)
For maximum compactness and a clean, no-snag pocket carry.
- Case Needed: Pocket Pro (Select from variants)
- Required Antenna: "Caterpillar" Style Antenna
- Required Battery: MakerNova 2000mAh Battery

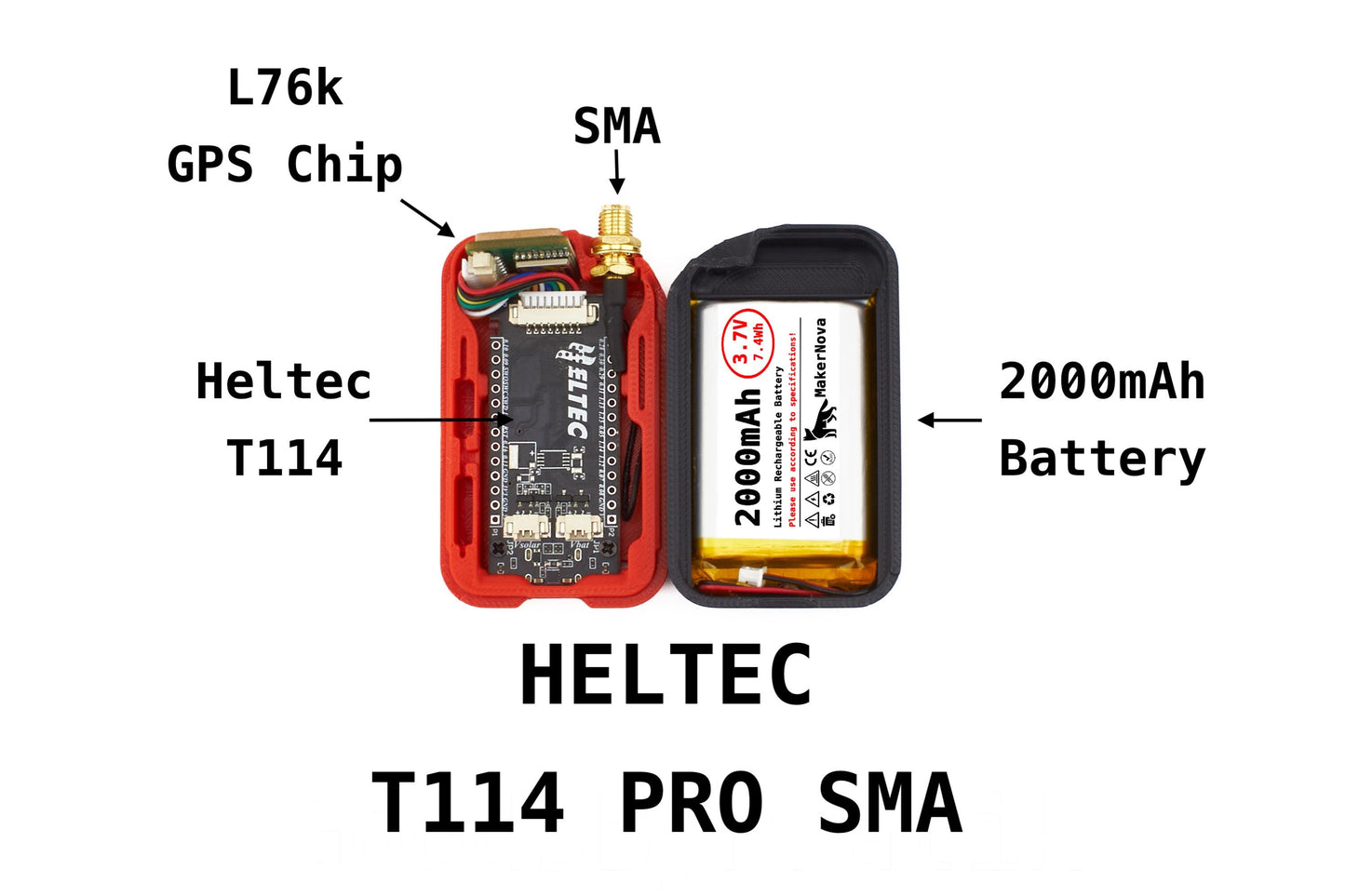

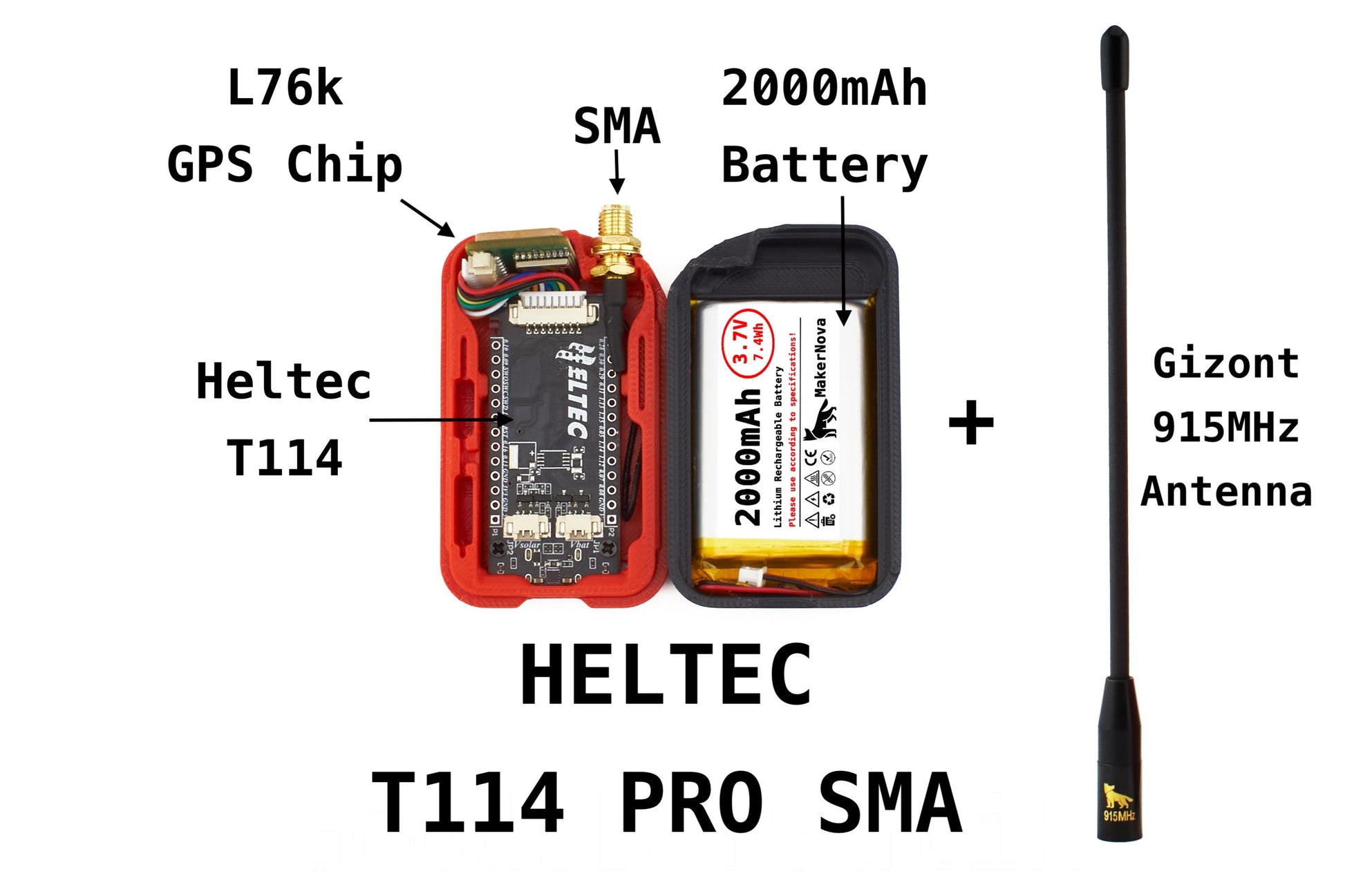

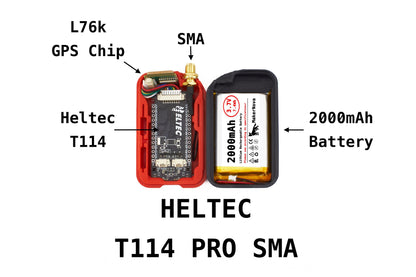

2. The Range Build (Pocket SMA)
For the flexibility to connect larger, high-gain external antennas.
- Case Needed: Pocket SMA (Select from variants)
- Required Antenna: Gizont 915MHz Whip Antenna
- Required Battery: MakerNova 2000mAh Battery
📦 Your Case Kit Includes:
- 1x Custom Case Front (Your color choice) & Black Case Back
- 1x Clear Button Set
- 1x Black Baofeng/Molle Clip
Please Note: This listing is for the CASE and CLIP only. The Heltec T114 board, battery, and antenna must be purchased separately using the guide above.
Assembly & Legal Information
Assembly Steps:
- Insert the buttons.
- Insert the antenna.
- Attach the antenna pigtail.
- Insert the board (USB end first).
- Connect the battery.
- Snap the case halves together.
Meshtastic® is a registered trademark of Meshtastic LLC. Meshtastic software components are released under various open-source licenses (see GitHub for details). No warranty provided—use at your own risk.
