Heltec V3 Case Collection for Meshtastic Devices | Pocket, Slim, and Pro Styles
A Case for Every Build of Your Heltec V3
Go from a bare board to a rugged, field-ready Meshtastic node with this custom-fit case, precision-molded specifically for the Heltec V3 across Pocket, Slim, and Slim Pro styles.
What Makes It Stand Out
- Integrated Baofeng/Molle compatible belt clip for easy carrying
- Customizable front plate color to personalize your build
- Battery-optimized across every style, supporting 2000mAh and 3000mAh packs

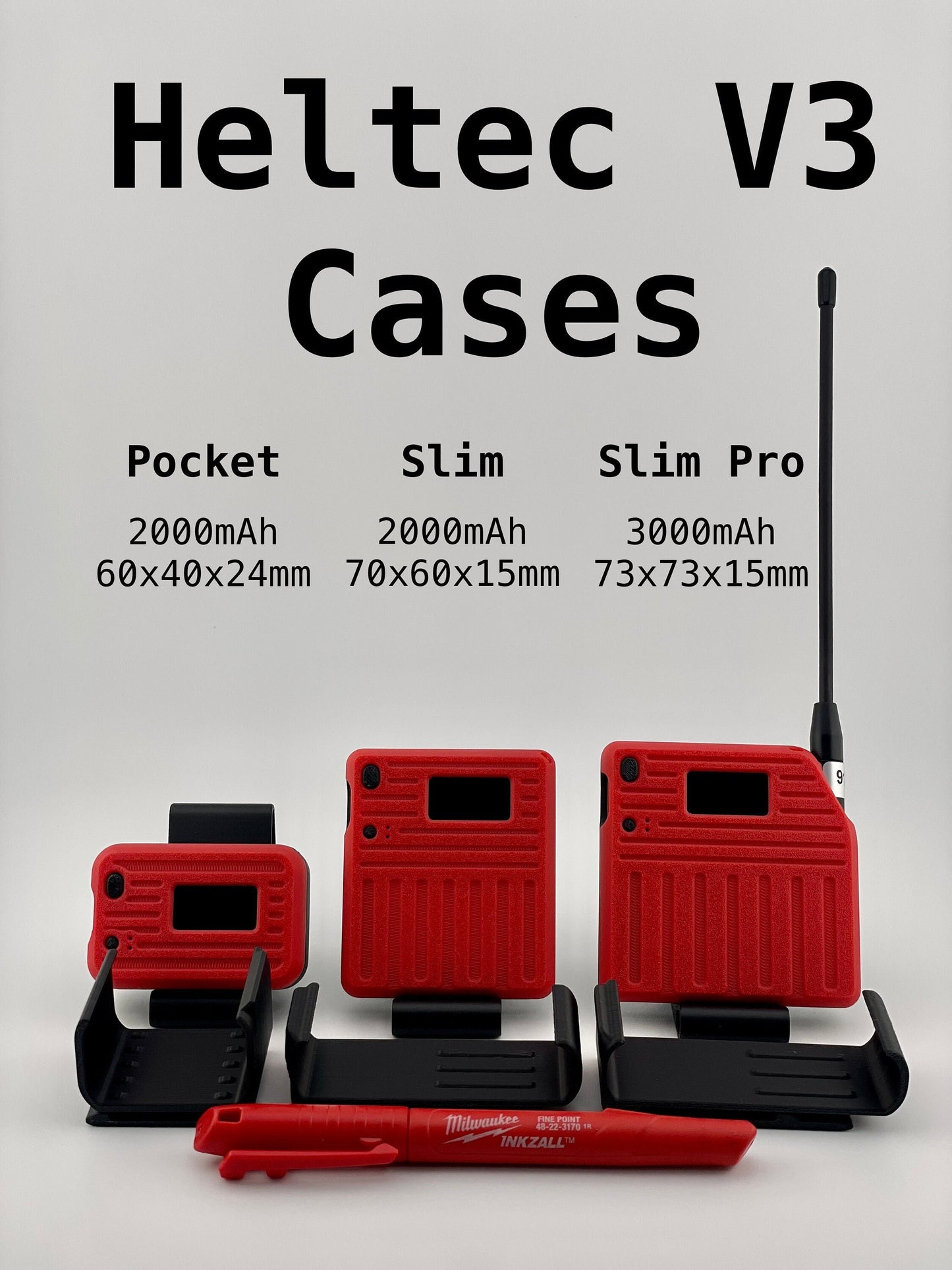

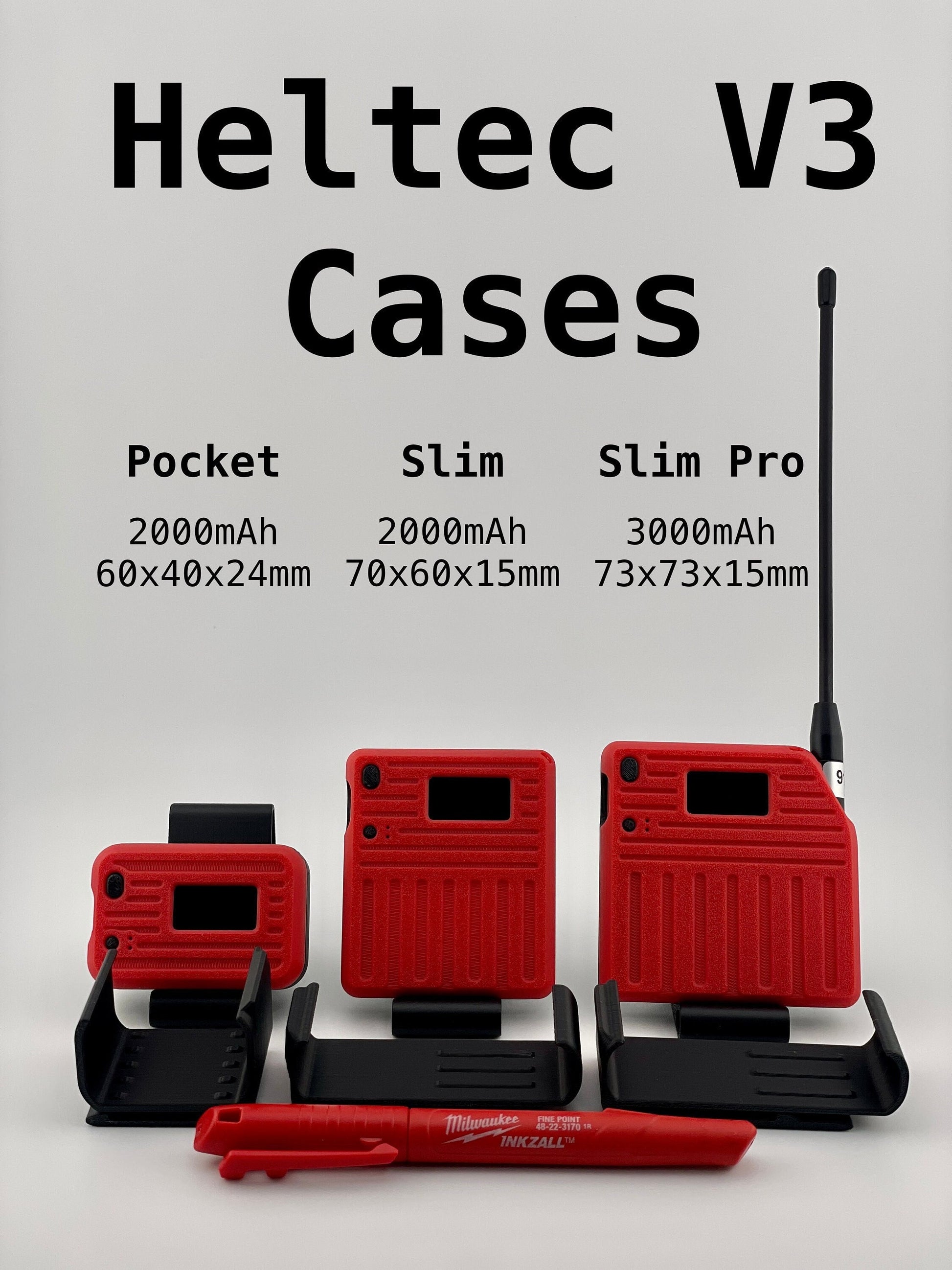

Step One: Choose Your Case Style
Select one of our two popular form factors. Both are designed for maximum portability.
| Variant | GPS Ready | Antenna Included | Max Battery | Notes |
|---|---|---|---|---|
| Pocket + Antenna | No | Yes | 2000mAh | Minimal footprint and ideal for everyday carry, with antenna included |

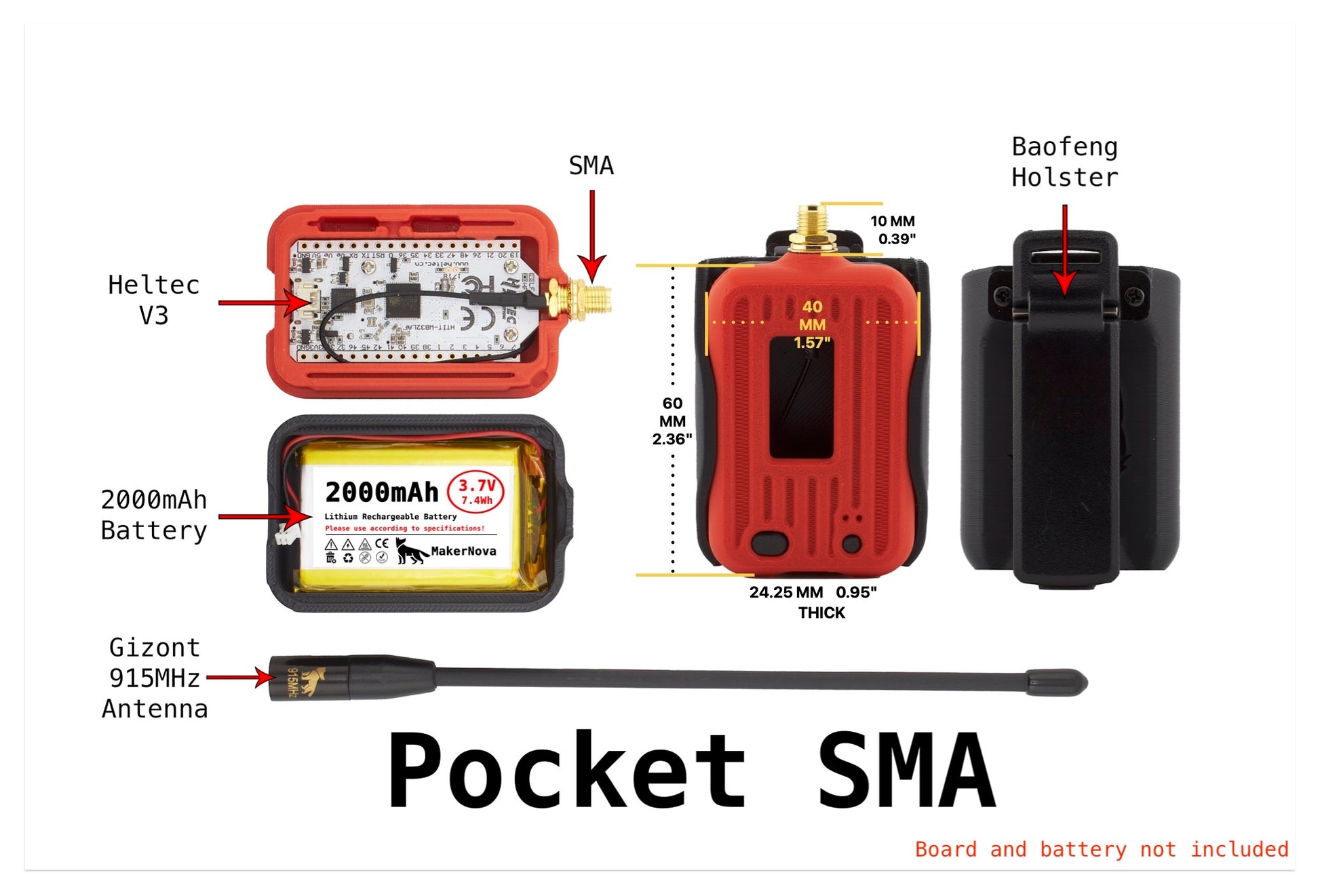

| Pocket SMA | No | No | 2000mAh | Compact size with antenna upgrade flexibility |
| Pocket SMA + Antenna | No | Yes | 2000mAh | Compact size, with antenna included |
| Slim + Antenna | No | Yes | 2000mAh | A comfortable handheld format with more interior space, with antenna included |
| Slim Pro | No | No | 3000mAh | Extended battery life in the same comfortable slim shell |
| Slim Pro + 90° SMA | No | No | 3000mAh | Extended battery life with right-angle SMA for tight-space connector routing |
| Slim Pro+SMA+Antenna | No | Yes | 3000mAh | Extended battery life, with antenna included |
Step Two: Select Compatible Hardware
Don't guess what parts you need. Follow this guide for a perfect, hassle-free build.
Battery
- Pocket & Slim (internal antenna): MakerNova 2000mAh Battery
- Pocket SMA & Slim Pro, Straight SMA Connector: MakerNova 2000mAh Battery
- Pocket SMA & Slim Pro, Right-Angle SMA Connector: MakerNova 3000mAh Battery
Antenna
- Pocket & Slim (internal): 2dBi Compact Whip Antenna
- Pocket SMA & Slim Pro (external): Gizont 915MHz Whip Antenna
▸ Case Dimensions

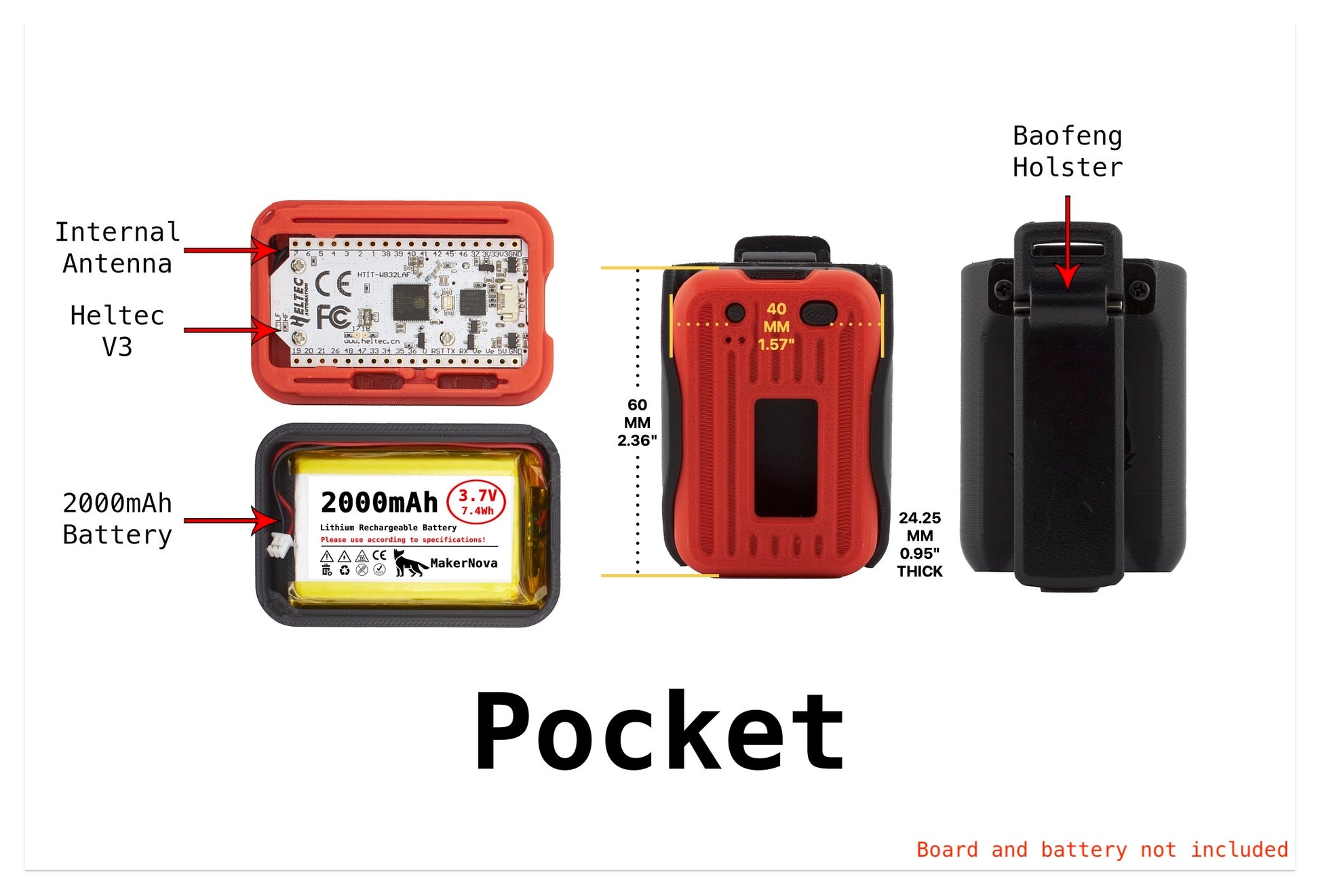

- Pocket + Antenna: 60 × 40 × 24 mm

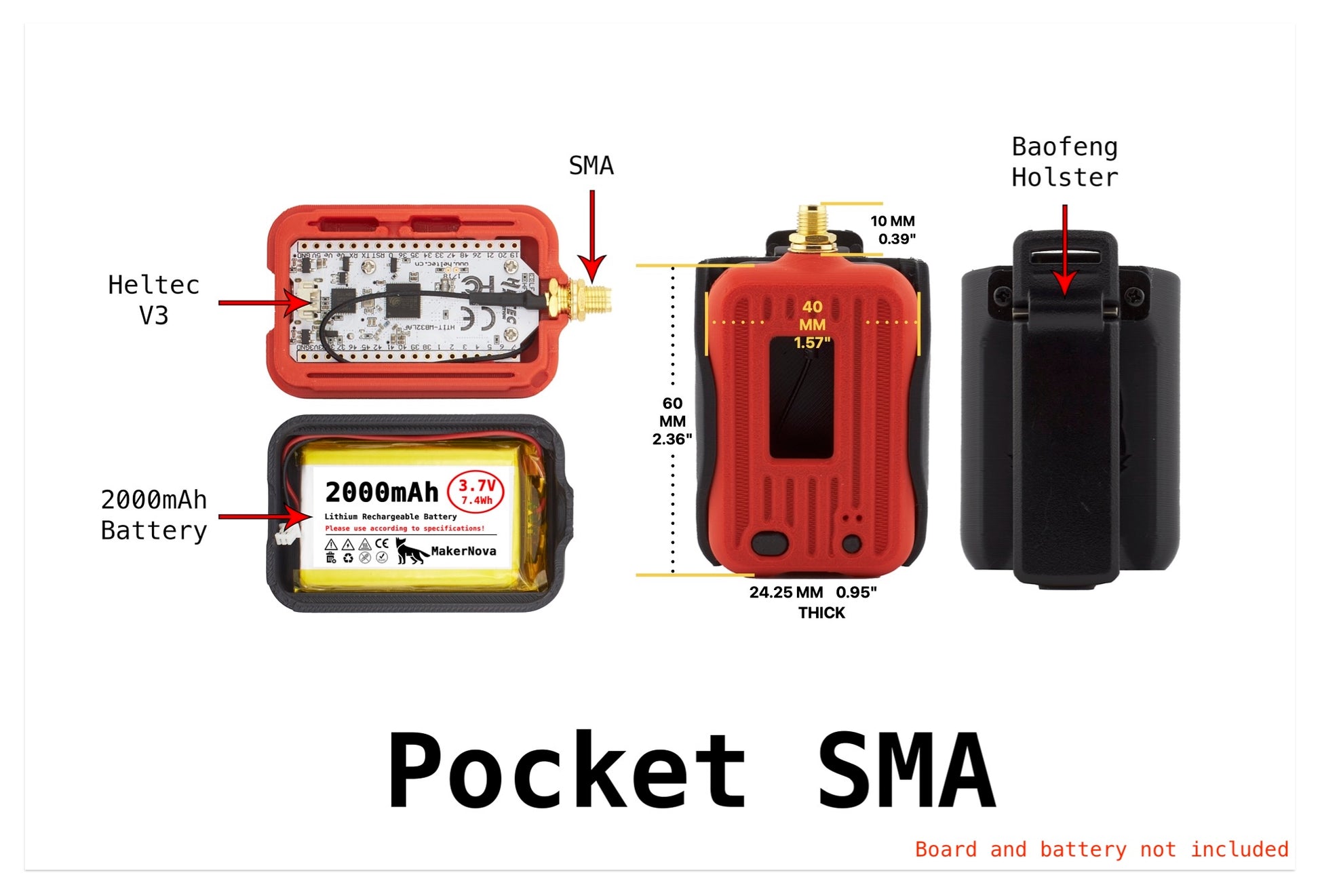

- Pocket SMA: 60 × 40 × 24 mm
- Pocket SMA + Antenna: 60 × 40 × 24 mm

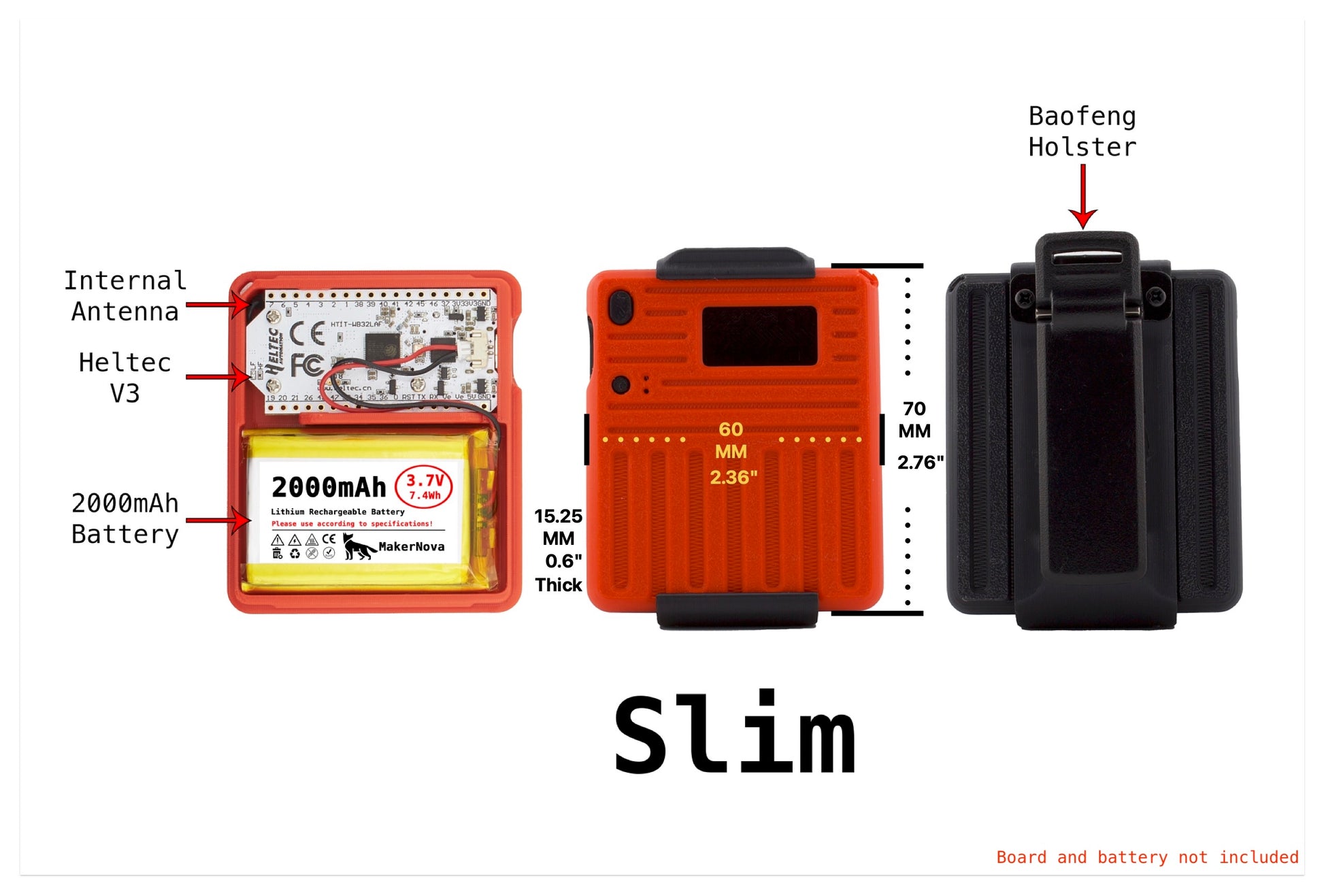

- Slim + Antenna: 70 × 60 × 15 mm

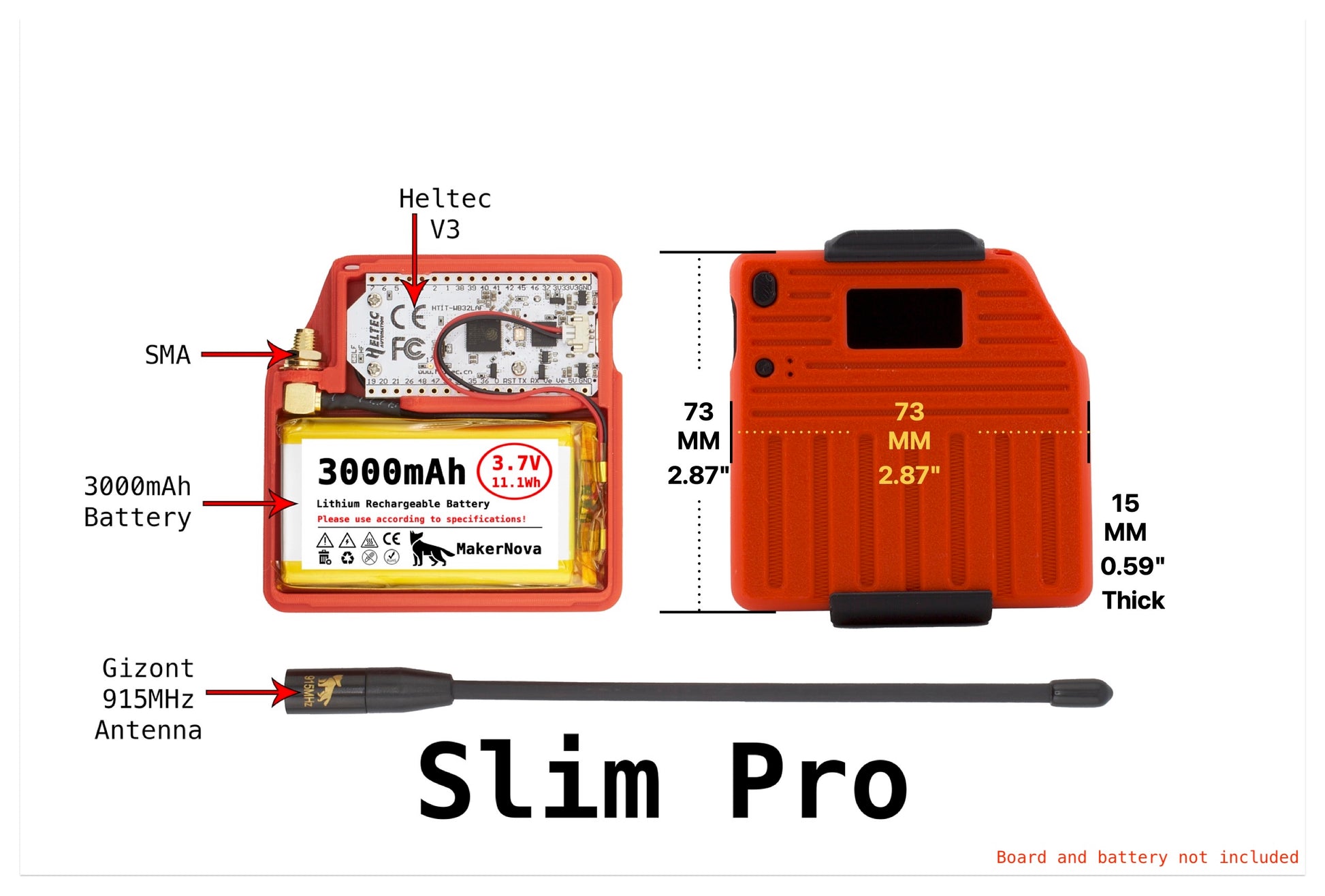

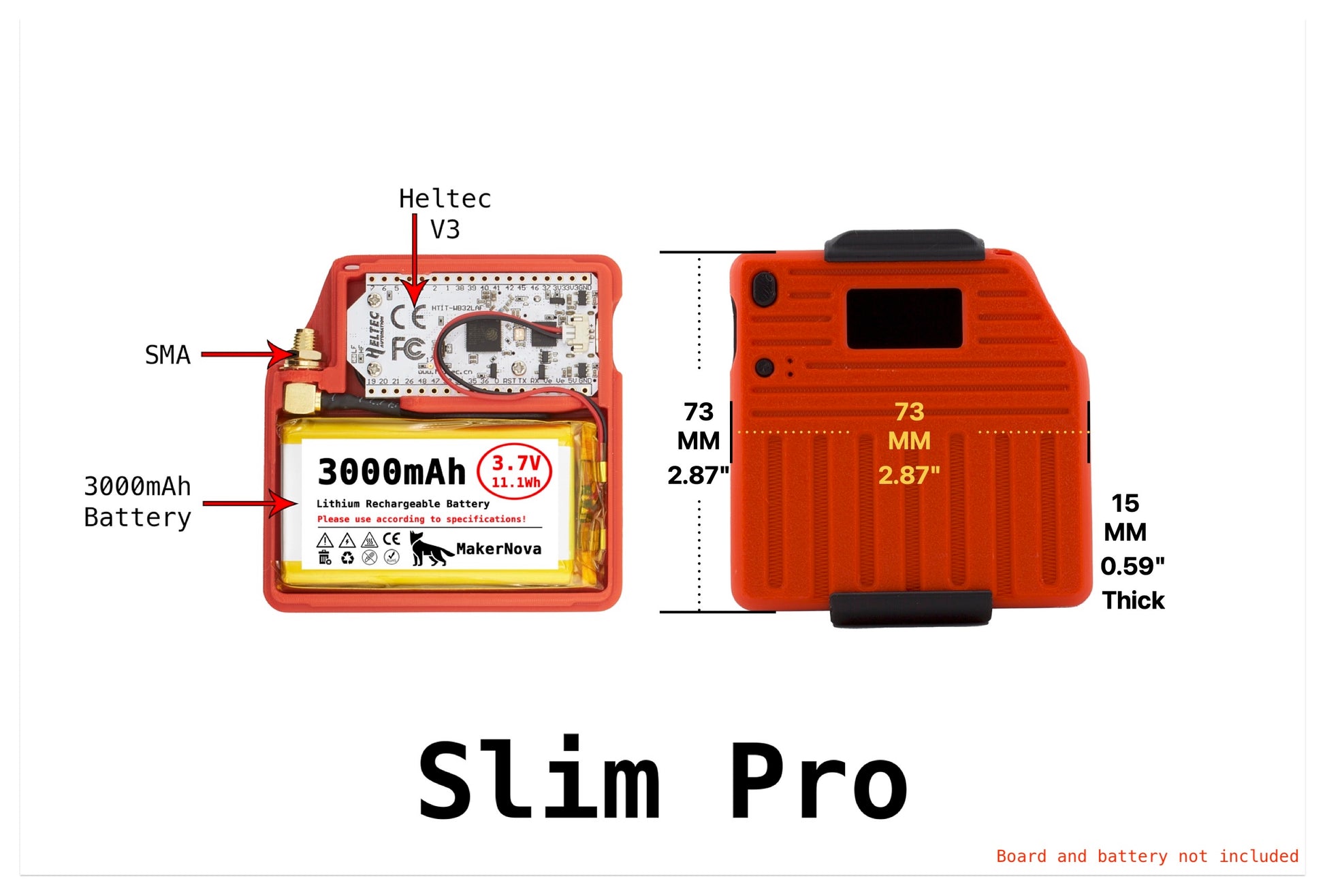

- Slim Pro: 73 × 73 × 15 mm
- Slim Pro + 90° SMA: 73 × 73 × 15 mm
- Slim Pro+SMA+Antenna: 73 × 73 × 15 mm

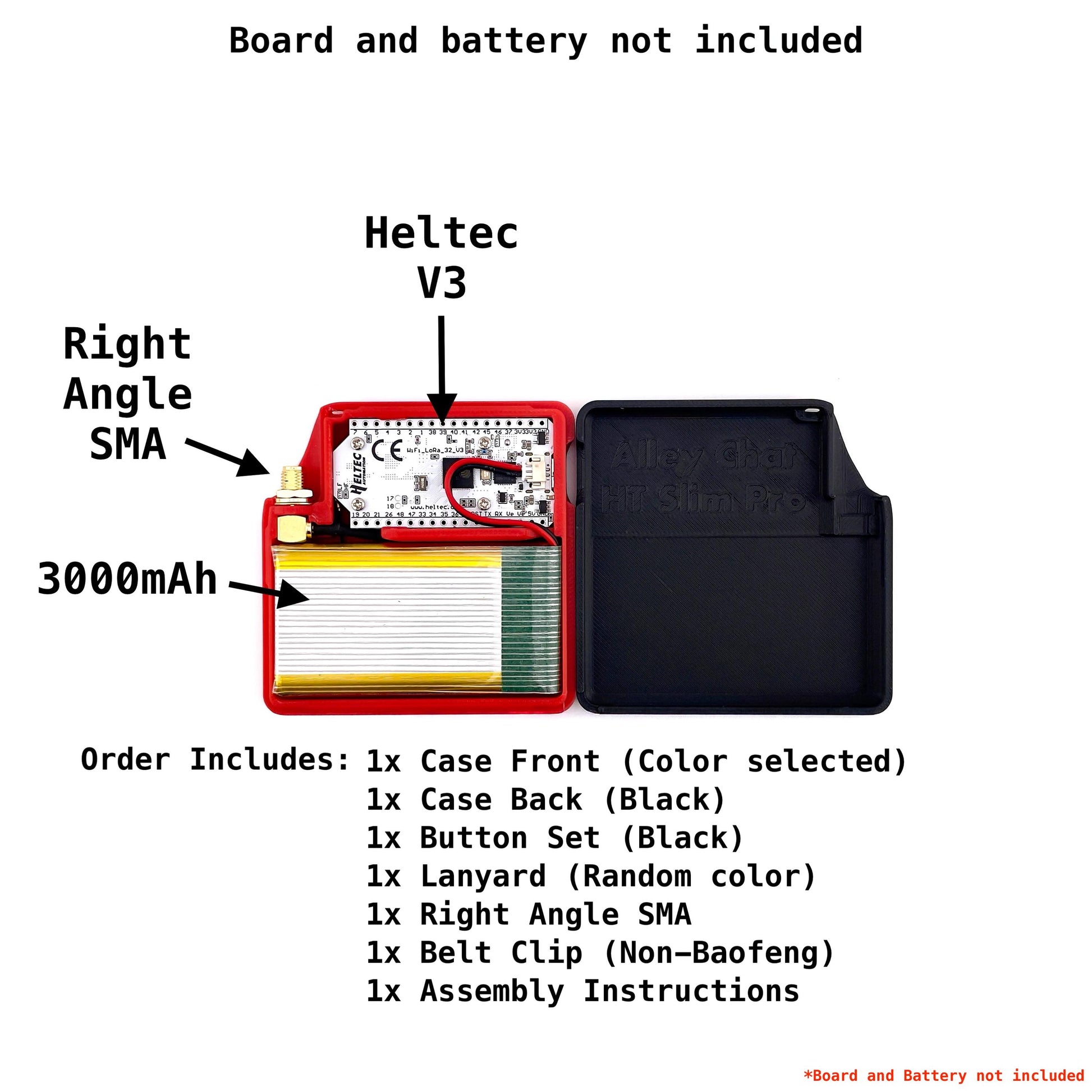

▸ Included in Every Case Kit
Every Style
- 1x Durable ASA Case Front (Your color choice)
- 1x Durable ASA Case Back (Black)
- 1x Black Button Set
- 1x Black Baofeng/Molle Clip
- Assembly instructions and video links
This is for the case and clip only. Heltec board, battery, and antenna must be purchased separately using the guide above.
▸ Assembly Instructions
Assembly Videos:
